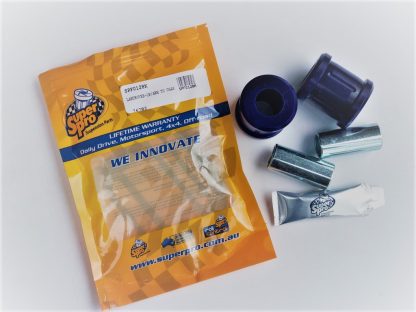

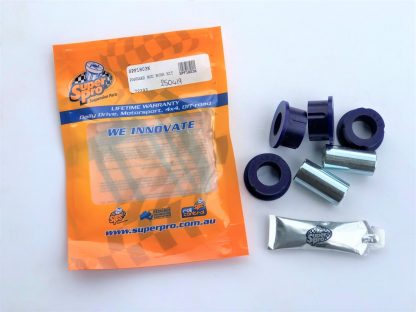

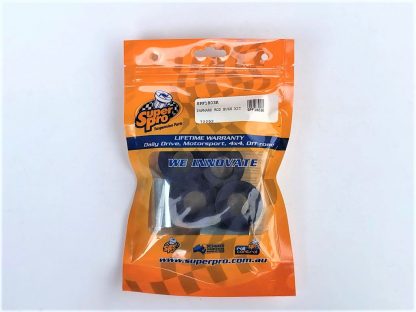

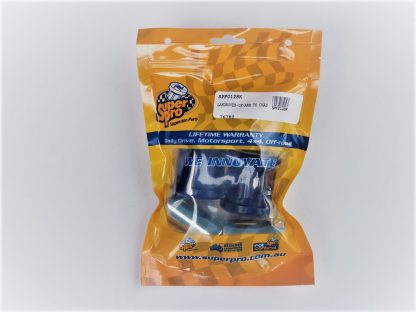

.SuperPro Full Bush Kit, Late TD5 and Early PUMA- KIT0043CK

Description 1 x SuperPro Polyurethane Full Bush Kit to fit Late TD5 and Early PUMA TDCI Part Number:- KIT0043CK, SuperPro Full Bush Kit, Late TD5 and early PUMA Weight:- 4.4Kg Manufacturer:- SuperPro Fits:- All Defender 90, 110, 130 Late TD5 and early PUMA with M16 Panhard Rod Bolts and 3/4 UNF A Frame Arm mounting bolts. **NOTE** TD5 owners please check that you have the later straight Panhard Rod that is fitted using M16 fixing Bolts, earlier TD5s are fitted with a bent Panhard Rod fixed using M14 Bolts, the change over year is around 2002, the part number you need to order for the earlier kit is KIT0043AK. (Later Left Hand Drive has Bent Panhard Rods but uses the M16 fixing Bolts) **NOTE** Puma owners please check your Upper A-Frame Arms, early PUMA’s either have the Bolt On “Crows Feet” brackets on the A-Frame Cross Member or the brackets are welded onto the Cross Member, these Bushes use 3/4UNF Bolts, this is on years 2007 up to approx 2009. Please check your Chassis Number is up to 9A766382  2009 onwards do not have the Bolt On brackets, the brackets are welded onto the A-Frame Cross Member but use M16 Bolts, the part number you need to order for the later kit is KIT0043DK (Chassis No 9A766383 onwards) If you are unsure then you must check and measure your Upper A-Frame Bolts to see if they are 3/4 UNF (EARLY) or M16 (LATE) Please look at the last picture which shows how to help measure your bolts. This is a complete set of polyurethane bushings from SuperPro, which are considered to be the best aftermarket bushings available for Land Rovers. The “OEM” and “G” bushings do not match up to the same quality as the original Production Line Genuine bushes that were used when the Defender was still in production. Nowadays, it is becoming increasingly difficult to find high-quality Genuine bushes. That is why we are using SuperPro bushings as the best available alternative Kit Includes :-. (All Bushes are also available separately) SPF1803K – Front Panhard Rod Bushes (Using M16 Bolts) (RBX101340) SPF0195K – Front Radius Arm to Axle Bushes (Wide Bush Arm) (NTC6781) SPF0206K – Front Radius Arm to Chassis Bushes (NRC4514) SPF0128K – Upper A-Frame Arms to Chassis Bushes (Using 3/4 UNF Bolts) (NTC1773) SPF0323K – Rear Trailing Arms to Chassis Bushes (NTC9027) SPF0129K – Rear Trailing Arms to Axle Bushes (NTC1772) A bolt kit may be required due to the condition of the original bolts fitted to the vehicle. We can also supply a bolt kit for the above bushes, Part Number:- GL1223 SuperPro bush kits we Stock KIT0043BK Fits:- Defender 1984-1993, 2.5, 200Tdi and Earlier with Narrow 38mm Front Radius Arms. KIT0043AK Fits:- Defender 1993-1998, 300Tdi. KIT0043AK Fits:- Defender 1998-2002, EARLY Td5 with M14 Panhard Rod Bolt. KIT0043AK Fits:- Discovery 1991-1999, 200Tdi, 300Tdi. KIT0043CK Fits:- Defender 2002-2007, LATE Td5 with M16 Panhard Rod Bolt. KIT0043CK Fits:- Defender 2007-2009 approx, Early Puma with Bolt On Crows Feet Bracket, or Welded Brackets on A-Frame cross member using 3/4 UNF Bolt. KIT0043DK Fits:- Defender 2009 onwards, Late Puma with welded Crows Feet Bracket on A-Frame cross member using M16 Bolt.
