Little Dreamer Wavetable Module

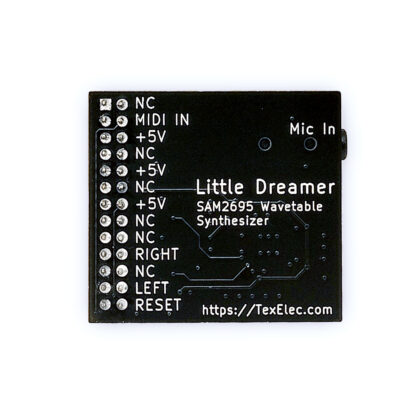

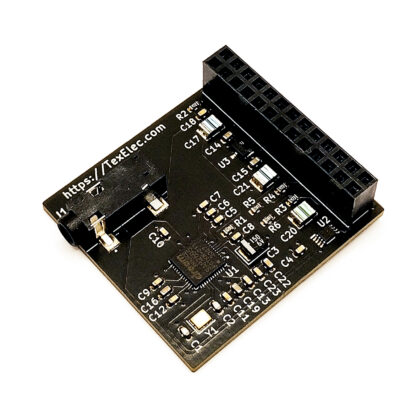

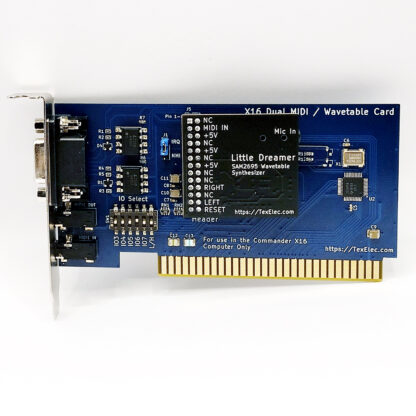

Description The Little Dreamer is a wavetable module which was designed for use on the Commander X16 Midi card or any PC sound card or computer which uses a standard 26-Pin wavetable header, such as the one present on many Sound Blaster cards. The Heart of the Module – Dream SAM2695 General MIDI single IC Synthesizer Max 64 Voice Polyphony (38 voices with Reverb, Chorus & Spatial Effects) Standard 26-Pin Wavetable Header Pinout for Maximum Compatibility Small Footprint PCB for Tight Installations Microphone Input for “Karaoke” Support – With Programmable Echo Requires only 5 Volts DC to Operate Additional Information: The SAM2695 IC is a high-fidelity extensible synthesizer and supports many effects. While it natively supports a default General MIDI instrument set, it also has an optional MT-32 compatible set as well.  It also includes a few different drum sets, including one to round out the MT-32 support.  MIDI control commands can be sent to select the program set desired. The SAM2965 is primarily used in smaller synthesizers, cell phones and karaoke machines. As such, the chip has a microphone input which is mixed with the MIDI audio and output through the module.  You can apply an echo-effect to the mike and control the levels via the internal mixer of the SAM2695.  The input requires a low impedance microphone, 50-100 ohms ideally.  Custom NRPN messages may be sent to enable the microphone, its level and the effects associated with it. For more information and a complete list of the features, consult the datasheet for the SAM2695 here: SAM2695 Datasheet If you want to hear it playing on a real Commander X16, check out the 8-Bit Guy’s video showing the card off here: 2024 Product Reveals for the Commander X16 Like this:Like Loading...
