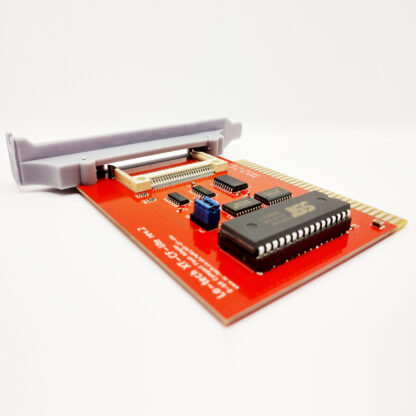

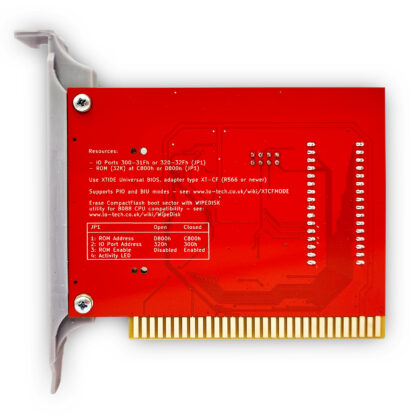

Lo-tech XT-CF-lite rev.2

Description **PLEASE BE AWARE that as of May 2024 we have started having the 3D printed brackets printed professionally.  Therefore, the bracket you receive could be white. *PLEASE NOTE: Due to a shortage of ROM chips you may receive our SMT PCB Replacement ROM instead of the DIP ROM chip installed on the card pictured. The SMT PCB Replacement ROM is pictured in the last photo. Transform your IBM PC, PC/XT or compatible PC by replacing the MFM or RLL hard drive with an ATA-2 CompactFlash card! This card provides bootable fixed disk storage and can reach 300KB/s in a 4.77MHz 8088 based IBM PC/XT when used with multi-sector capable CompactFlash cards or Microdrives. This card is a bootable storage adapter for IBM PC, PC/XT, PC/AT and compatible hardware – essentially any PC with an ISA slot. (Please note, your PC must support option ROM chips to work with the onboard ROM.) Compact Flash cards are also not without their perils. Many cards we have found which claim ATA-2 compatibility are not fully compatible. This tends to be the case with lower end cards. We like SanDisk Ultra / Ultra 2. We generally use 2gb or 4gb cards, but larger or smaller can be used. Any ATA-2 compliant card should work, but be aware that some experimentation may be necessary. DOS 5.0 or 6.22 are probably best, as you can support a full 2GB FAT16 partition. Only use your target PC to format the card. Windows may, or may not configure the partitions correctly. Of course, you may run other operating systems as well, but create the partition via the OS setup. If for some reason your machine does not boot after FDISK and Format, run “FDISK/mbr” to reset the boot sector. This often fixes a hang at boot-time. Lo-tech reference pages: blog entry, FAQ and wiki page. The ROM on this card is provided by the XT-IDE Universal BIOS via GNU GPL v2. You may also want to check out the SanDisk Ultra II CompactFlash Card. Like this:Like Loading...
