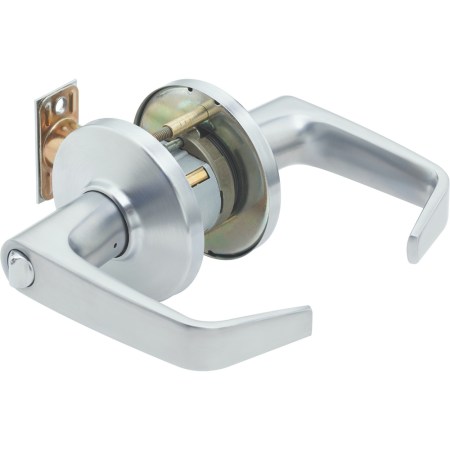

BEST 9K37 AB 15 D S3 626 Grade 1 Lever Lock Entrance Function

Description Model: 9K37AB15DS3626 9K Series Entrance Cylindrical Lock Backset: 2-3/4″ 7-pin Core Housing accepts all Best cores Lever Style: Contour angle return Rose Style: 3-1/2″ Convex Strike Package S3: Conforms to ANSI A115.2 for 1-3/4″ doors (4-7/8″ x 1-1/8″ with curved lip) Finish: Satin chromium plated finish Lever Handles are high quality Zinc Alloy   Entrance Function Operation Latch is operated by: Rotating the inside lever, Rotating the outside lever – only when the inside push button is out, Turning the key in the outside lever Outside Lever Locked by: Pushing the inside button, Pushing and turning the inside button. (Turning the button keeps the outside lever locked until the button is turned back) Outside Lever Unlocked by: Turning the key in the outside lever (only when the button is not turned), Rotating the inside lever (only when the button is not turned), Closing the door (only when the button is not turned) Inside Lever Locked by: Cannot be locked Inside Lever Unlocked by: Always unlocked   Features: Rose locking pin and rose assembly design offers great torque resistance. It prevents the locking pin from twisting, bending, or breaking under attack. The innovative design of the slotted key release cam and locking lug assembly create maximum attack resistance. Even though damaged, the lock still allows key access. In addition, the lever is fully functional from the inside. The hub-mounted torsion spring and strong retractor springs help prevent lever sag and offer a smooth and snappy operation. Strong through-bolt mounting studs increase torque resistance. Heavy rose liner material is highly attack resistant. Strong retractor springs provide resistance to lever sag. Zinc hubs with a shrouded locking lug, guaranteeing higher quality and increased torque resistance. The outside lever sleeve is a seamless one piece construction made of a hardened steel alloy that provides additional reinforcement in the locking lug slot.   *Please Note: Cylindrical Lever does not ship with interchangeable core.*      BEST 9K Catalog
