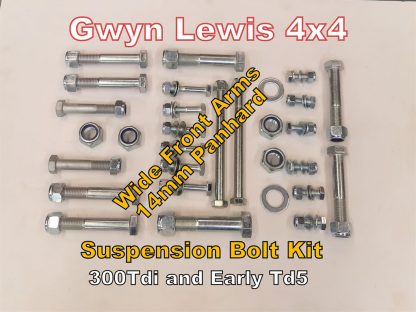

A Full Suspension Bolt Kit, 300tdi and Early TD5 – GL1220

Description 1 x Full Suspension Bolt Kit for 300tdi and Early TD5 Part Number:- GL1220, Full Suspension Bolt Kit, 300tdi and Early TD5 Fits:- All Defender 90, 110, 130 300tdi and early TD5 (Early TD5 fitted with bent Panhard Rod that uses M14 fixing Bolts) (Later 24 Spline Axles with Wide Bush Front Radius Arms) Weight:- 3.9Kg Kit Includes:- GL1214 Panhard Rod Bolt Kit 2 x M14 x 80mm 8.8 Grade Bolts 2 x M14 Nyloc Nuts GL1217 Late Wide Front Radius Arm Bolt Kit 4 x M16 x 100mm 10.9 Grade Bolts 4 x M16 Nyloc Nuts 2 x M20 Nyloc Nuts GL1212 Rear A-Frame Bolt Kit 2 x ¾ UNF x 4″ Bolts 2 x ¾ UNF  Nyloc Nuts 2 x M10 x 60mm 10.9 Grade Bolts 4 x M10 X 50mm 10.9 Grade Bolts 6 x M10 Nyloc Nuts 12 x M10 Washers 2 x ½ UNF x 6 ½” Bolts 2 x ½ UNF Nyloc Nuts GL1199 Rear Trailing Arm Bolt Kit 6 x M10 x 30mm 10.9 Grade Set Screws 12 x M10 Washers 6 x M10 Nyloc Nuts 2 x M20 Nyloc Nuts 2 x M20 Washers 2 x M16 x 100mm 10.9 Grade Bolts 2 x M16 Nyloc Nuts If you would like a SuperPro Bush kit to go along with this suspension bolt kit, please see here – KIT0043AK **NOTE** For TD5 owners please check that you have the earlier Bent Panhard Rod that is fitted using M14 fixing Bolts, later TD5s are fitted with a Straight Panhard Rod fixed using M16 Bolts, the change over year is around 2002, and the part number you need to order for the later kit is GL1223. (Later Left Hand Drive have Bent Panhard Rods but uses the M16 fixing Bolts)
