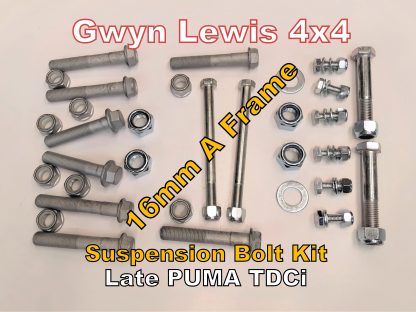

A Full Suspension Bolt Kit, PUMA Late – GL1224

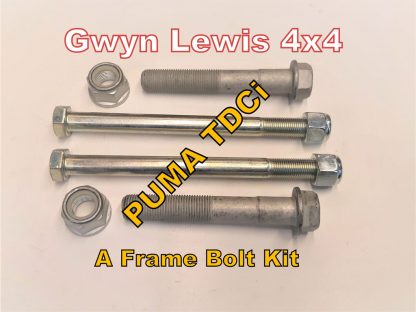

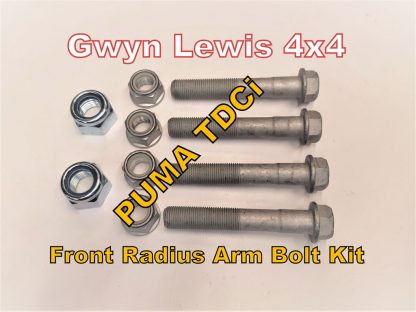

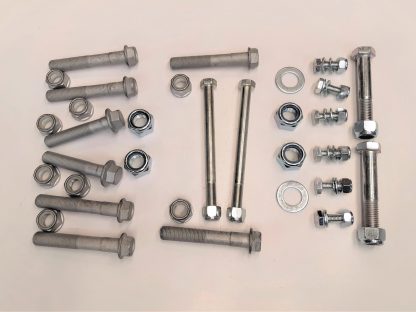

Description 1 x Full Suspension Bolt Kit for Late PUMA Part Number:- GL1224, A Full Suspension Bolt Kit, PUMA Late Fits:- All Defender 90, 110, 130 Late PUMA TDCI Weight:- 3.4Kg Kit Includes:- GL1216 Panhard Rod Bolt Kit 2 x M16 x 82mm 10.9 Grade Flange Head Bolts 2 x M16 Flange Head Nyloc Nuts GL1221 Front Radius Arm Bolt Kit 4 x M16 x 100mm 10.9 Grade Flange Head Bolts 4 x M16 Flange Head Nyloc Nuts 2 x M20 Nyloc Nuts GL1222 Rear A-Frame Bolt Kit 2 x M16 x 100mm Flange Head 10.9 Grade Bolts 2 x M16 Flange Head Nyloc Nuts 2 x ½ UNF x 6 ½” Bolts 2 x ½ UNF Nyloc Nuts GL1199 Rear Trailing Arm Bolt Kit 6 x M10 x 30mm 10.9 Grade Set Screws 12 x M10 Washers 6 x M10 Nyloc Nuts 2 x M20 Nyloc Nuts 2 x M20 Washers 2 x M16 x 100mm 10.9 Grade Bolts 2 x M16 Nyloc Nuts The M16 fixings are :- (Excluding the fixings in kit GL1199) Metric Fine Thread Flange Head Stepped Shanks Geotech Coated If you would like a SuperPro Bush kit to go along with this suspension bolt kit, please see here – KIT0043DK **NOTE** Please check your Upper A-Frame Arms, Late PUMA the brackets are welded on the the A-Frame Cross Member and the bushes use M16 Bolts, this is approx 2009 onwards. Please check your Chassis Number is 9A766383 onwards. 2007 to approx 2009 either have Bolt On “Crows Feet” brackets on the A-Frame Cross Member or the brackets are welded onto the Cross Member, but use 3/4UNF Bolts, the part number you need to order for the earlier kit is GL1223 (chassis Number is to 9A766382) If you are unsure then you must check and measure your Upper A-Frame Bolts to see if they are 3/4 UNF (EARLY) or M16 (LATE)
