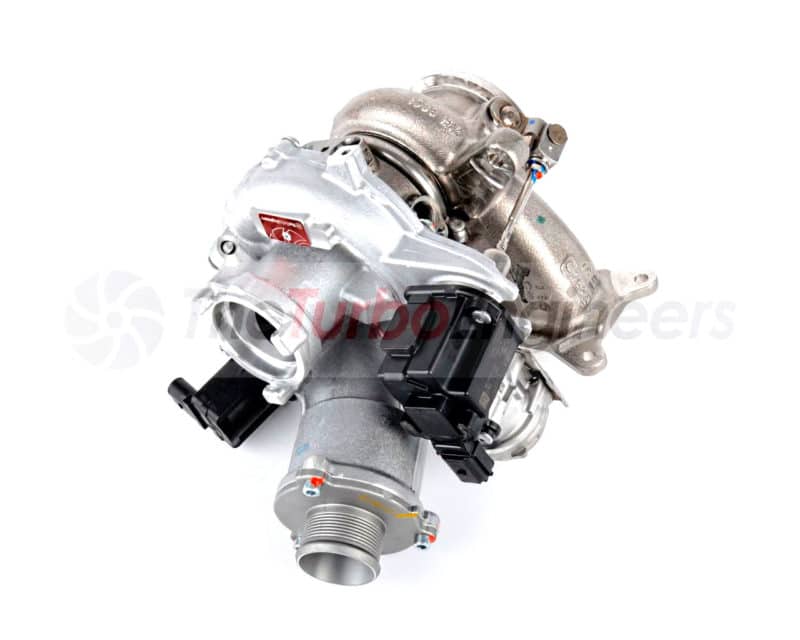

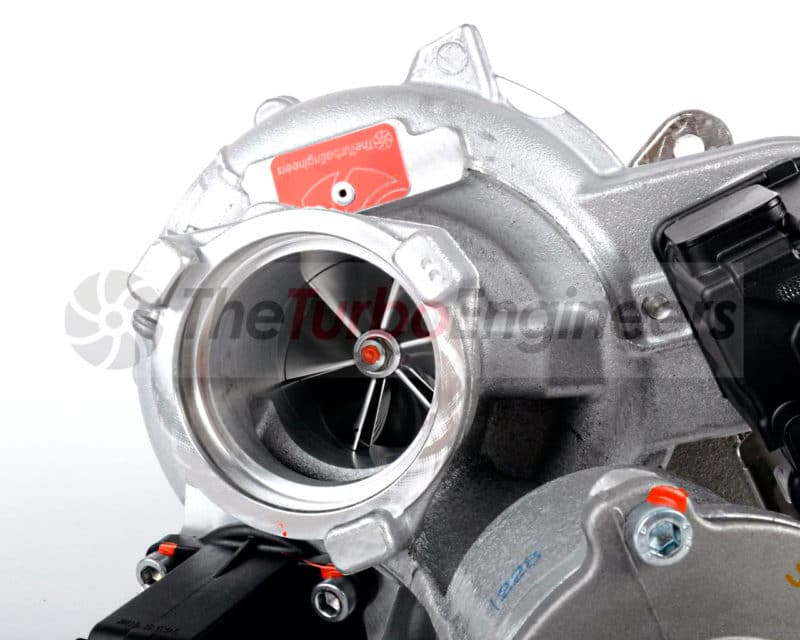

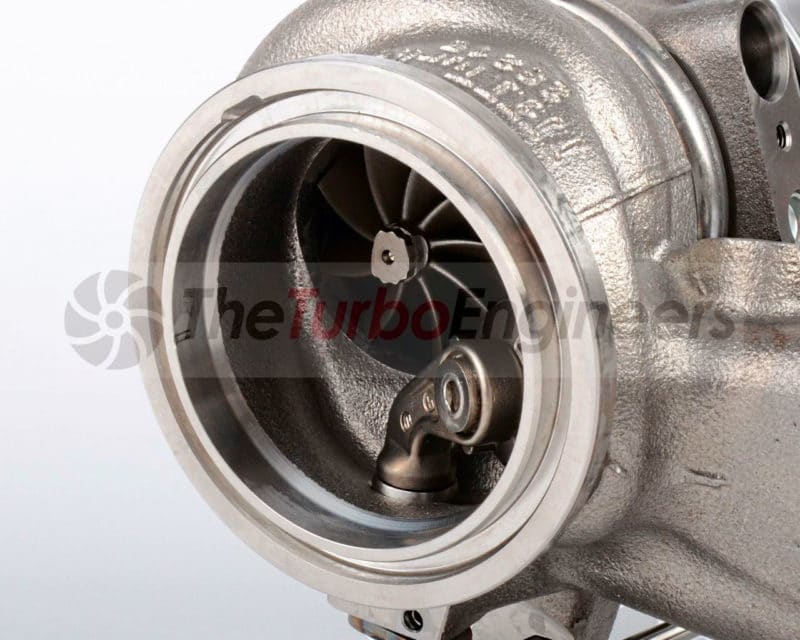

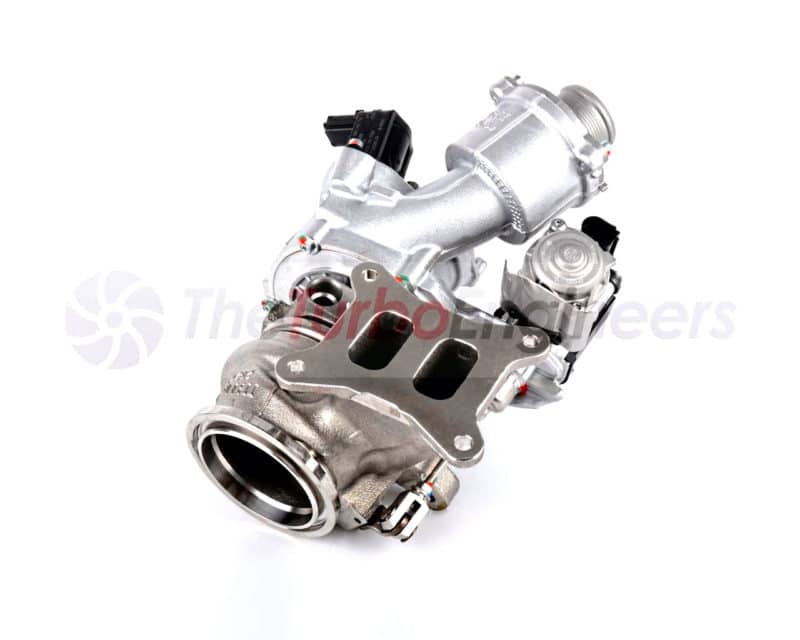

VAG 2.0 / 1.8TSI EA888.3 MQB TTE535 UPGRADE TURBOCHARGER TTE535 hybrid performance upgrade turbocharger based on the Original IS38 turbocharger for the 3rd generation VAG 2.0TSI following on from our TTE525R upgrade stage. Stage 3 power, with great spool and response. We feel this is the best balanced performing hybrid IS38 available on offer. Engineered & Enhanced EA888 Gen 3 – IS38 To construct a TTE535 we change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to optimum gap to match the new compressor profile. We replace the original IS38 turbine and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow. We also replace the original thrust bearing for TTE upgrade 360 deg that is made in-house. We also fit our TTE CNC silencer delete. Modifying the turbo discharge silencer, removing the original baffle internals and fitting a new straight through section, removing any restriction and its function as a noise canceling device, and so improving the flow and enhancing the sound. The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size. Equilibrium Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document. Product Highlights Original Genuine IS38 IHI turbocharger as the base part Original Genuine actuator Original Genuine diverter valve TTE Billet Milled compressor 6 6 Blade TTE High-Flow Low- Mass 9 Blade Turbine TTE CNC milled OEM silencer delete TTE Reinforced bearing pack Plug and Play installation as IS38 turbocharger 535 PS proven at 2.0 bar 99ron Proven TheTurboEngineers quality Single parts finely balanced then components assembled and core high-speed VSR balanced Supplied with a balance test result document Made in Germany Vehicle Selection: Please note on certain generations of cars there was a turbocharger actuator revision. Please use the vehicle selection box. If the car is not listed please let us know in the comments box at check out: model & year Please note if sending a used turbocharger for the upgrade process. TTE does not recondition the Electronic actuator or Diverter you send. Your sent items will be re-installed. Turbos must be sent complete (actuator, silencer) Do not send your diverter valve. IT IS RECOMMENDED A NEW DIVERTER VALVE IS FITTED OEM Specs: 300HP & 380Nm Stage 4: 536HP & 599Nm Additional Information Weight 10 kg Dimensions 40 × 45 × 40 cm Brand The Turbo Engineers
