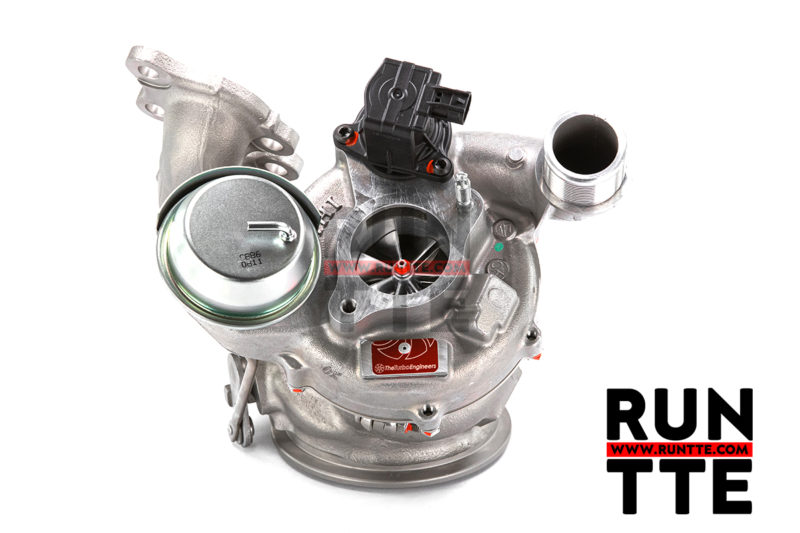

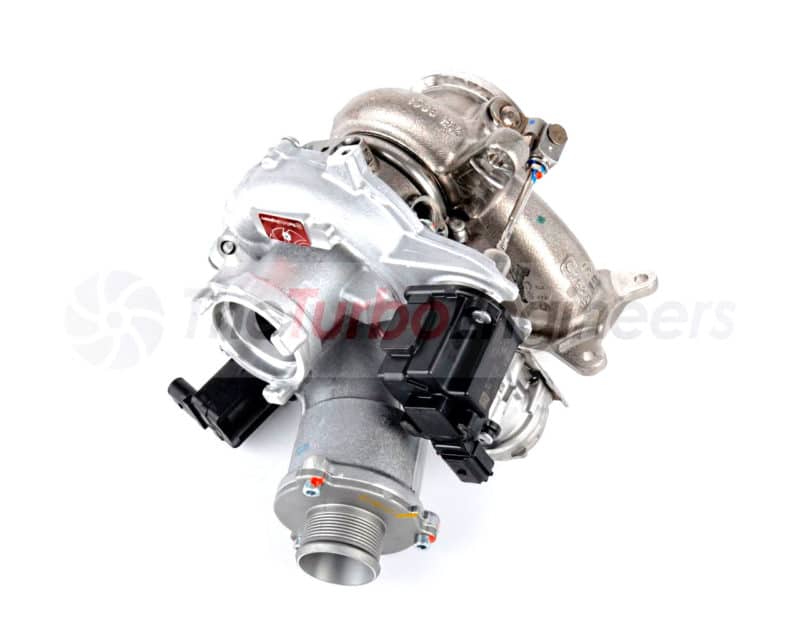

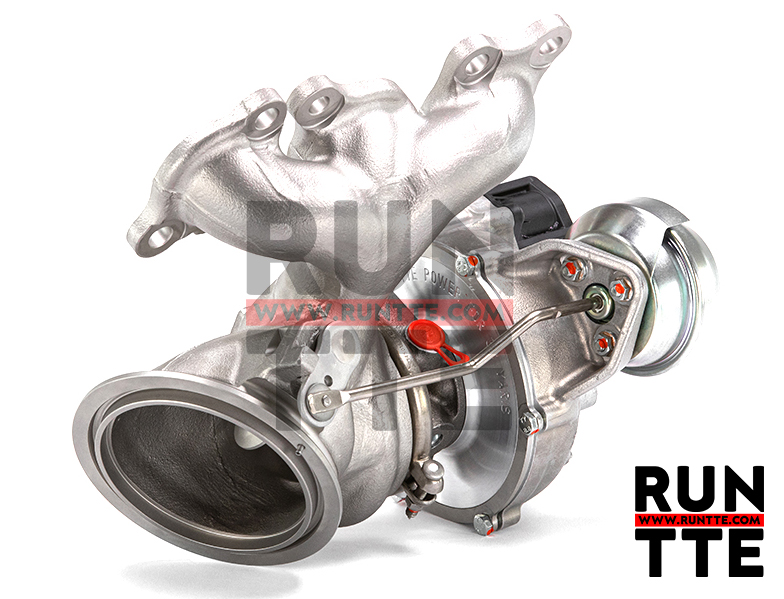

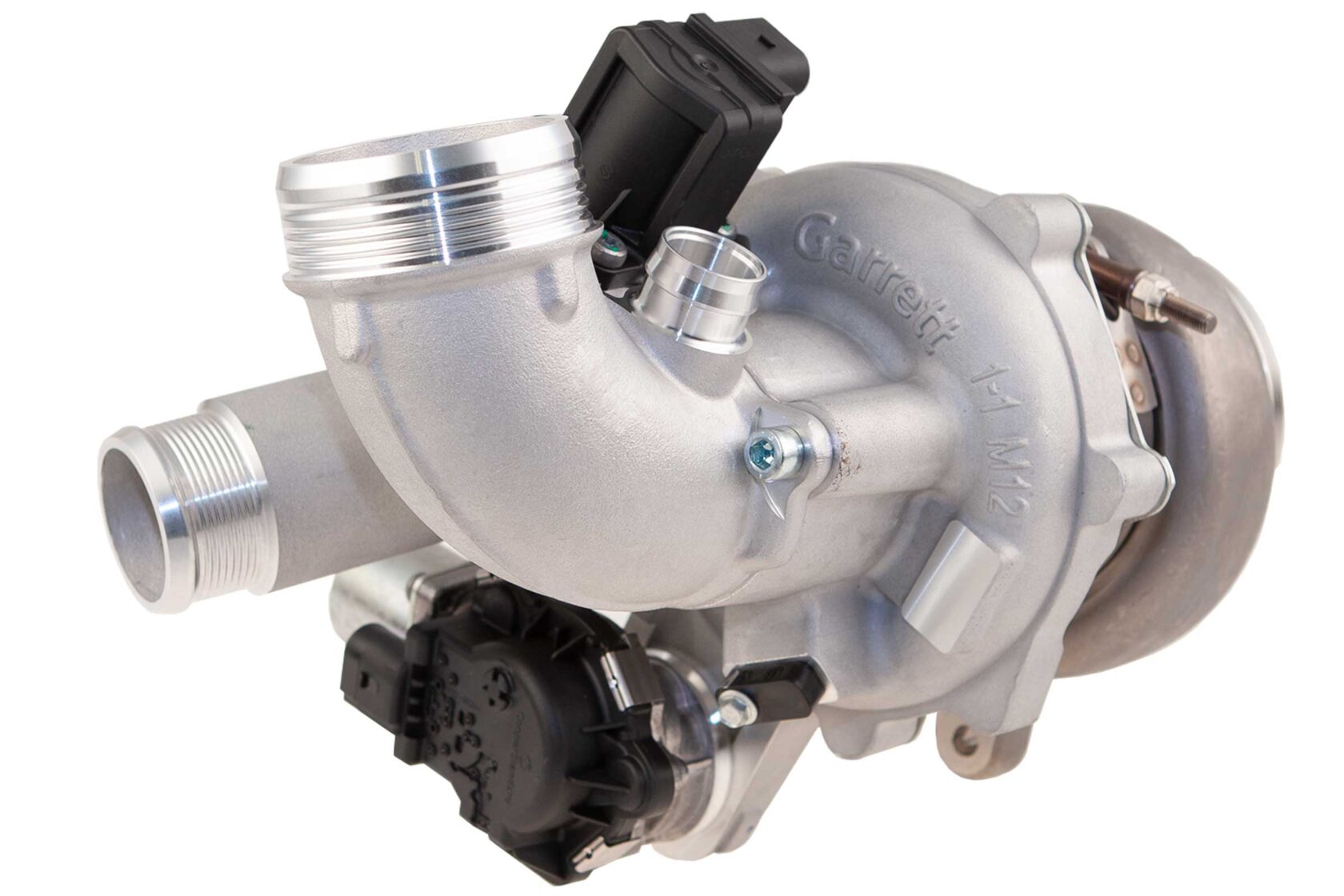

The Turbo Engineers TTE400 G16E-GTS Toyota GR Yaris Upgraded Turbocharger – TTE10423

Toyota GR Yaris TTE400 (G16E-GTS) Hybrid Turbo Engineered & Enhanced   To construct a TTE400 G16E-GTS we change the original compressor and employ a far larger and more efficient billet wheel and mill the compressor cover to an optimum gap to match the new compressor profile. We replace the original turbine and CNC mill the turbine housing to install a larger lightweight turbine for greater gas flow. We also replace the original thrust bearing for TTE upgrade 360 deg that is made in-house. The TTE turbine is a special turbine designed by TheTurboEngineers.  Advantages are larger diameter for greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size. Equilibrium Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.  Product Highlights Original IHI turbocharger as the base parts Original Genuine actuator Original Genuine diverter valve TTE Billet Milled compressor 7 7 Blade TTE High-Flow Turbine TTE Reinforced bearing pack Plug & Play installation Upto 400 HP Proven TheTurboEngineers quality Single parts finely balanced then components assembled and core high-speed VSR balanced Supplied with a balance test result document Made in Germany Additional Information Weight 10 kg Dimensions 40 × 45 × 40 cm Brand The Turbo Engineers
